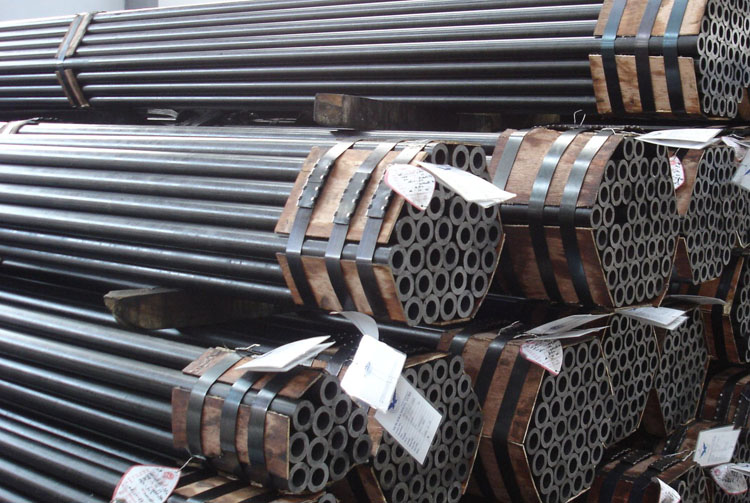

EN10216-2 non-alloy steel tubes
EN 10216-2 is a European standard suitable for seamless steel tubes for pressure purposes. This part of EN1026 specifies the technical delivery conditions in two test categories for seamless tubes for circular cross section, with specified elevated temperature properties, made of non-alloy and alloy steel.
- Application:
For producing storage tanks of heat-resistant steels used in boiler-making, tool-making;
For constructing pressure reservoirs and high pressure are simultaneously used to have summarized load and special conditions.
- The main steel grade:
P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10
Other grades of steel pipe can be provided based on negotiations.
Grade | C max | Si max | Mn max | P max | S max | Cr max | Mo max | Cu max | Ni max |
P195GH | 0.13 | 0.35 | 0.7 | 0.025 | 0.02 | 0.03 | 0.08 | 0.3 | 0.3 |
P235GH | 0.16 | 0.35 | 1.2 | 0.025 | 0.02 | 0.03 | 0.08 | 0.3 | 0.3 |
P265GH | 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 0.03 | 0.08 | 0.3 | 0.3 |
13CrMo4-5 | 0.10-0.17 | 0.35 | 0.40-0.70 | 0.025 | 0.02 | 0.70-1.15 | 0.4-0.6 | 0.3 | 0.3 |
10CrMo9-10 | 0.08-0.14 | 0.5 | 0.30-0.70 | 0.025 | 0.02 | 2.00-2.50 | 0.9-1.1 | 0.3 | 0.3 |
Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation L(%) | Elongation T (%) |
P195GH | ≥195 | 320-440 | 27 | 25 |
P235GH | ≥235 | 360-500 | 25 | 23 |
P265GH | ≥265 | 410-570 | 23 | 21 |
13CrMo4-5 | ≥290 | 440-590 | 22 | 20 |
10CrMo9-10 | ≥280 | 480-630 | 22 | 20 |
