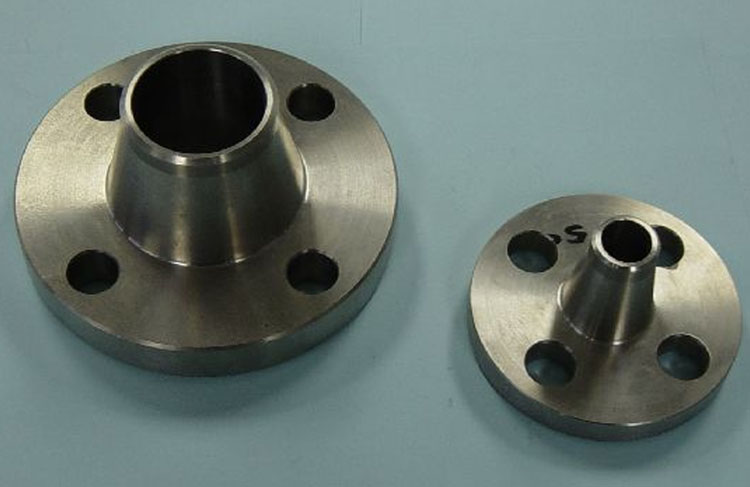

Welding Neck Flange
The Welding neck flanges is normally referred to as the high hub flange. It is designed to transfer stresses to the pipe, thereby reducing high stress concentrations at the base of the flange.
The welding neck flange is the best designed butt-welded flange of those currently available becuase of its inherent structural value. It is expensive because of the design.
Standards, Dimensions & Weight of Welding Neck Flanges:
- ASME/ANSI B16.5 Class 150 WN
- ASME/ANSI B16.5 Class 300 WN
- ASME/ANSI B16.5 Class 600 WN
- ASME/ANSI B16.5 Class 900 WN
- ASME/ANSI B16.5 Class 1500 WN
- ASME/ANSI B16.5 Class 2500 WN
- ASME B16.47 Series A/MSS SP-44 Class 150 WN
- ASME B16.47 Series A/MSS SP-44 Class 300 WN
- ASME B16.47 Series A/MSS SP-44 Class 600 WN
- ASME B16.47 Series A/MSS SP-44 Class 900 WN
- ASME B16.47 Series B/API 605 Class 75 WN
- ASME B16.47 Series B/API 605 Class 150 WN
- ASME B16.47 Series B/API 605 Class 300 WN
- ASME B16.47 Series B/API 605 Class 600 WN
- ASME B16.47 Series B/API 605 Class 900 WN
- BS 3293 Class 150 WN
- BS 3293 Class 300 WN
- BS 3293 Class 600 WN
- DIN 2631 PN 6
- DIN 2632 PN 10
- DIN 2633 PN 16
- DIN 2634 PN 25
- DIN 2635 PN40
Specifications of Welding Neck Flanges:
- Size: 1/2” to 60”, DN 12mm to DN 1500mm
- Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
- Facing: RF / RTJ
Material of Welding Neck Flanges:
- Cabon steel: A105, A350 LF2, C22.8, S355JR
- Stainless steel: A182 F304/F304L/F316/F316L/F321
- Alloy steel: F11, F12
Comes in different sizes, grades, standards and specifications, these neck flanges are being resourced from the most-trusted vendors by out experts. These flanges are only one of its kinds because of their trouble-free connectivity in the company of other pipes. In addition, our products are widely used in refining industries for connecting reasons. Offered long weld neck flange is being made up by consuming finest grade material and most-recent techniques in an observance by setting standards. Our valued clients can get this qualitative range of flanges from Sanghvi Impex Industries at industry-leading costs.
Standards: ANSI B16.47 Series A & B, ANSI B16.5, API-605, MSS SP44, ASA, EN1092, BS 4504, DIN
Type: Long Weld Neck Flanges
Size: ½” (15 NB) to 48″ (1200NB)
Class: 150 Class, 300 Class, 400 Class, 600 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Alloy Steel, Carbon Steel, Low temperature Steel
Material Grade of Long Welding Neck Flanges:
| Stainless Steel | ASTM A182, A240 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
| Duplex & Super Duplex Steel | ASTM A182 / ASME SA182, F44, F45, F51, F53, F55, F60, F61 |
| Carbon Steel | ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 |
| Low Temperature Carbon Steel | A350 LF2/A350 LF3 |
| Alloy Steel | ASTM A182 / ASME SA182 & A387 F1, F5, F9, F11, F12, F22, F91 |
| Nickel Alloy | ASTM / ASME SB 564 / 160 / 472, UNS 2200 ( Nickel 200 ), UNS 2201 (Nickel 201 ), UNS 4400 (Monel 400 ), UNS 8020 ( Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600 ), UNS 6601 ( Inconel 601 ), UNS 6625 (Inconel 625), UNS 10276 ( Hastelloy C 276 ) |
The flanges we offer mainly include Welding Neck, Blind, Slip-on, Lap-Joint, Socket, Spectacle, Forged, Reducing and Threaded.
