ASTM A213 alloy steel pipe
We manufacture ASTM A213/ASME SA213 T22 Tubes & ASTM A213 T2/T5/T5b/T5c/T9/T11/T12/T22/T23/T91/T92 tubing in China for export all around the world.
- Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000; 22000mm (max), also U bending can be offered.
Chemical Composition(%, max) of ASTM A213
| Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P |
|---|---|---|---|---|---|---|---|---|
| TP304 | 0,08 | 0,75 | 2 | 18 - 20 | 8 - 11 | - | 0,03 | 0,04 |
| TP304L | 0,035 | 0,75 | 2 | 18 - 20 | 8 - 13 | - | 0,03 | 0,04 |
| TP316 | 0,08 | 0,75 | 2 | 16 - 18 | 11 - 14 | 2 - 3 | 0,03 | 0,04 |
| TP316L | 0,035 | 0,75 | 2 | 16 - 18 | 10 - 15 | 2 - 3 | 0,03 | 0,04 |
| TP321 | 0,08 | 0,75 | 2 | 17 - 20 | 9 - 13 | - | 0,03 | 0,04 |
| T11 | 0.05-0.15 | 0.50-1.00 | 0.30-0.60 | 0.5-1.0 | --- | 1.0-1.5 | ≤0.25 | ≤0.025 |
| T12 | 0.05-0.15 | ≤0.50 | 0.30-0.61 | 0.80-1.25 | --- | 0.44-0.65 | ≤0.25 | ≤0.025 |
| T13 | 0.05-0.15 | ≤0.50 | 0.30-0.60 | 1.90-2.60 | --- | 0.87-1.13 | ≤0.25 | ≤0.025 |
Mechanical properties of ASTM A213
| Steel Grade | Tensile Strength N/mm2 (min) | Yield Strength N/mm2 (min) | Elongation % (min) |
|---|---|---|---|
| TP304 | 515 | 205 | 35 |
| TP304L | 485 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP321 | 515 | 205 | 35 |
| T11 | ≥415 | ≥205 | 30 |
| T12 | ≥415 | ≥220 | --- |
| T13 | ≥415 | ≥205 | 30 |

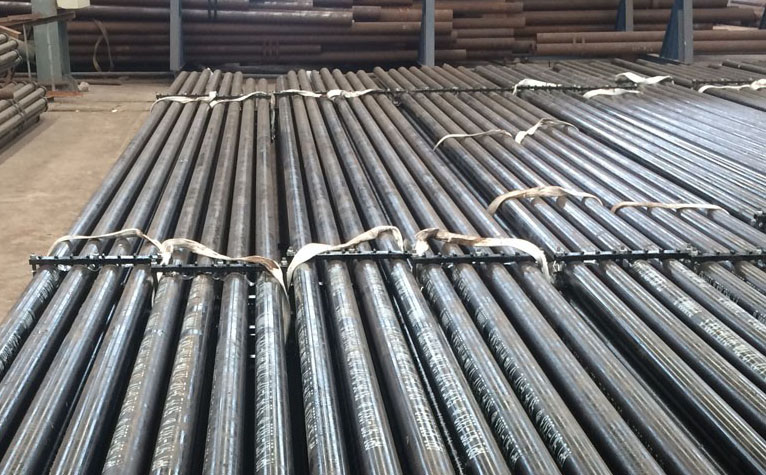

ASTM A213 tubes are individually wrapped by hand to ensure that the high quality of the material is maintained and no damage in the last stages of production. We recommend pallet packing to ensure sage packing and promote delivery of the ordered consignment. A213 tubes come with imprints relevant to the job information (eg, heat number, size, material and part number). This information is also printed along all delivered tubes.
If you are interested in other alloy steel pipes, please click A333, A335, A213, DIN 17175, JIS G3467.
